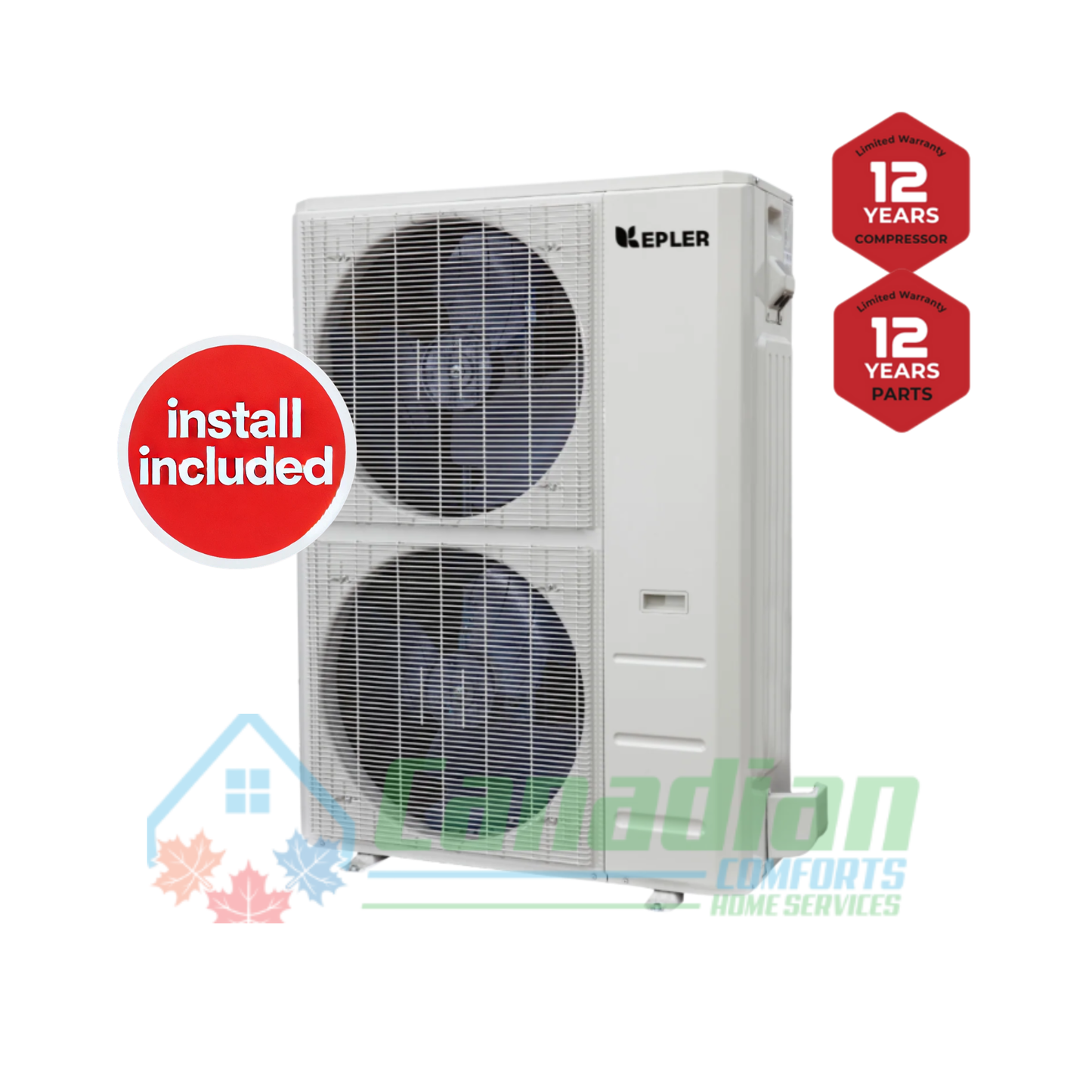

Kepler LUXE (-30) Central Heat Pump

Kepler products are engineered for the Canadian climate, prioritizing your comfort and well-being. A Central-Kepler heat pump system ensures a tranquil home environment, providing year-round warmth and cooling with whisper-quiet, energy-efficient performance. Whisper-Silent Operation Experience the ultra-quiet performance of our heat pump, thoughtfully designed to enhance home comfort with minimal noise disturbance.

Cooling Performance:
Capacity: 24,000–60,000 Btu/hr
Operating Capacity Range: 10,000–54,000 Btu/hr
Power Input: 650–8,100 W
Operating Current: 3.3–26.8 A
EER2: 8.6–10.7 Btu/W
SEER2: 14.5–16.5 Btu/W

Heating Performance:
Capacity: 25,000–55,000 Btu/hr
Operating Capacity Range: 9,600–60,000 Btu/hr
Power Input: 610–6,380 W
Operating Current: 3.0–27.0 A
COP: 3.0–3.4
HSPF4: 8.5–9.7 Btu/W
HSPF5: 6.6–7.7 Btu/W

Indoor Unit:
Dimensions (W×D×H):
(17.52×20.98×17.99 in → 24.49×20.98×27.99 in)

Packing Dimensions:
(20.47×22.24×20.28 in → 27.76×22.24×30.31 in)

Throttle Type: TXV

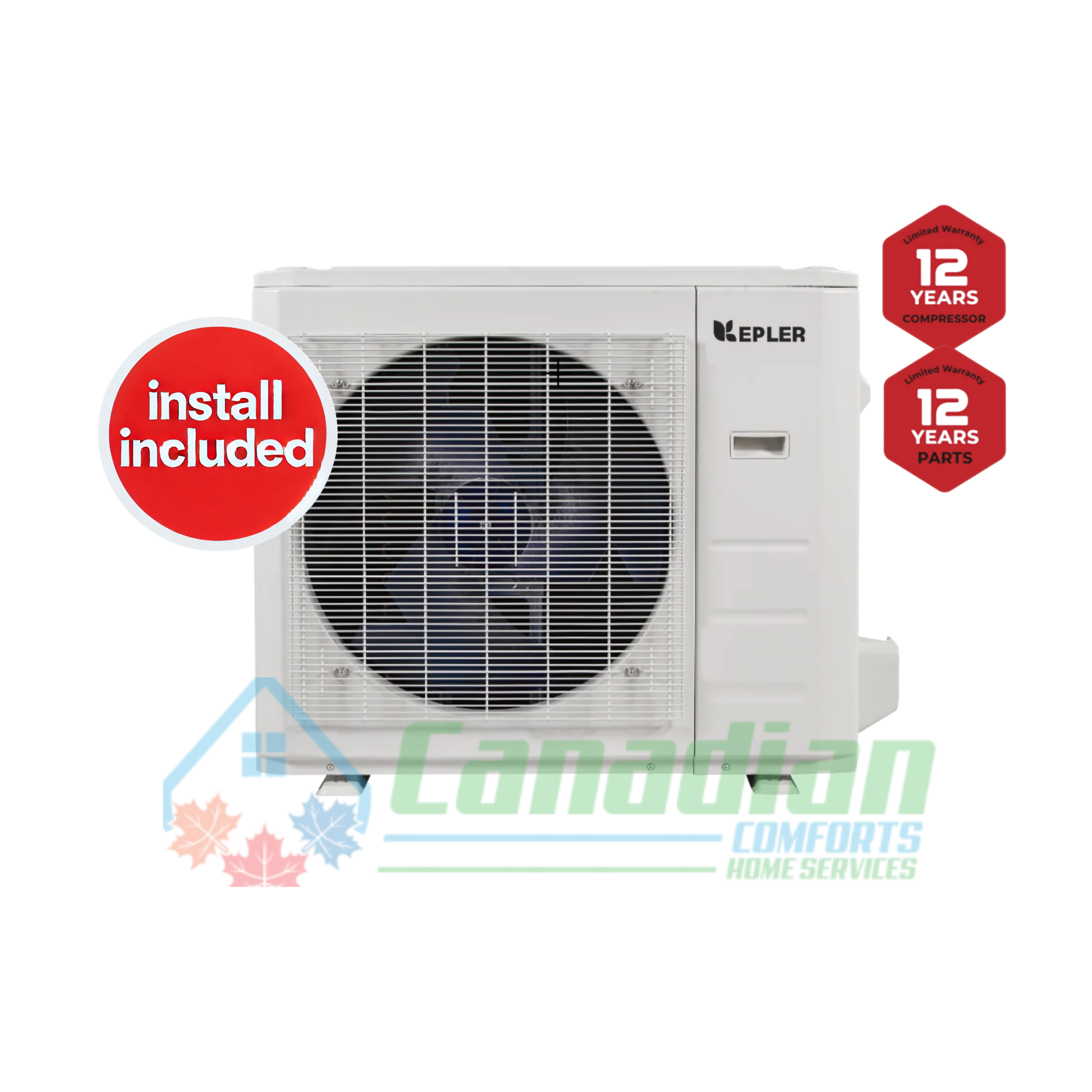

Outdoor Unit
Dimensions (W×D×H):
846×410×810 mm → 980×375×975 mm
(33.27×16.14×31.89 in → 38.58×14.76×38.39 in)

Outdoor Noise Level: 62–65 dB(A)
Throttle Type: EXV

Electrical:
Power Supply: 208–230V, 1-Phase, 60Hz
Minimum Circuit Ampacity (MCA): 20–40 A
Refrigerant: R410A

12 Years of Parts and Compressor
